General Setup for Microsoft Azure

Enhanced Advanced

Five Posit Connect integrations (Azure, Azure OpenAI, Azure Databricks, Microsoft Graph, and SharePoint Online) share a single provider registration: one application in Microsoft Entra ID. This page covers that shared registration and then the Connect configuration for each.

Component parts of the Microsoft Azure integrations.
Component part Value
Provider registration An application registration in Microsoft Entra ID, with the relevant API permissions and either a client secret or a federated credential
Authentication types Viewer, Service Account; Workload Identity for the general Azure template
Configuration auth_type, tenant_id, client_id, client_secret (sensitive), scopes
Credential delivery Token exchange
Content compatibility Viewer: interactive only. Service Account and Workload Identity: interactive and rendered.

Provider registration

Performed by an Azure administrator.

All integrations that use APIs from within Microsoft Azure must start with registering an application in Microsoft Entra ID. The application serves as the base all Azure integrations, with each unique integration simply requiring:

  1. The specific API permissions that need to be associated with the app registration.
  2. The corresponding scopes that are passed on to the Connect administrator.

This section walks through the process of configuring an application in Microsoft Entra ID and provides a list of API permissions and their corresponding scopes for the Microsoft Azure integrations that Connect natively supports.

Create application in Microsoft Entra ID

Register application

The Azure administrator registers a new OAuth Application in Microsoft Entra ID. Application registration has different requirements depending on the authentication type of the integration in Connect:

Viewer Integration

The Azure administrator adds a redirect_uri for the OAuth application. Azure sends the user credentials to the redirect_uri at the end of the OAuth handshake, allowing Connect to obtain a temporary access token and refresh token.

The OAuth application is configured with the following redirect URL (sometimes referred to as a callback URL): https://connect.example.org/__oauth__/integrations/callback. Replace connect.example.org with the address of the Connect server.

Note

For OAuth application administrators who prefer to use the same OAuth application for both Posit Connect and Posit Workbench, simply register the Workbench redirect URL (https://workbench.example.org/oauth_redirect_callback) in addition to the Connect redirect URL.

Service Account Integration

Service account integrations do not direct the user through a login flow, so a redirect_uri is not required.

Set up client authentication

The Azure administrator decides whether this OAuth application requires client authentication. Client authentication requirements differ depending on the authentication type of the integration in Connect:

Viewer integration

Viewer integrations support both Public and Confidential OAuth applications. If unsure whether to create a Confidential or Public OAuth application, choose Confidential.

For Public OAuth applications, the Azure administrator enables the Allow public client flows option under Authentication > Advanced settings.

For Confidential OAuth applications, the Azure administrator adds a new client secret under the Certificates & secrets section.

Service account integration

Service Account integrations require a client secret, which represents the service account identity being used by the Connect Server. The Azure administrator adds a new secret under the Certificates & secrets section.

Workload identity integration

Workload identity is similar to using a service account, but avoids storing a long-lived secret in Connect. Microsoft recommends using workload identity federation when possible for enhanced security.

Note

Workload identity requires Azure to verify tokens issued by Connect. The Connect server must be reachable from Azure for this to work.

Instead of generating a client secret, the Azure administrator configures a federated credential on the application registration with the following values:

Field Value
Federated credential scenario Other issuer
Issuer The value of IdentityProvider.Issuer if configured, otherwise the value of Server.Address with a trailing slash (e.g., https://connect.example.org/).
Explicit subject identifier connect
Audience api://AzureADTokenExchange (Azure’s default)

The Azure administrator shares the application’s client ID (and tenant ID) with the Connect administrator.

Add API permissions

In the API permissions section, the Azure administrator adds the required permissions for the OAuth application. API permissions define the capabilities granted to the user when they request credentials from this OAuth application. These permissions are also referred to as scopes.

Connect provides native support for three specific Microsoft Azure integrations:

Integration API Permission
Azure OpenAI Microsoft Cognitive Services/user_impersonation
Microsoft Graph Microsoft Graph
SharePoint SharePoint

Connect additionally provides a general Azure integration template that can accommodate any collection of API permissions and scopes.

Transfer information to Connect administrator

The Azure administrator shares the following information with the Connect administrator:

Field Description
tenant_id The unique identifier of the organization in Azure (Microsoft Entra ID).
client_id The unique identifier of the application in Azure (Microsoft Entra ID).
client_secret The secret string configured under Certificates & secrets. Not required for Public Viewer or Workload Identity integrations.
scopes Permissions supported by the OAuth application. Only include the scopes required by Connect. Not required for Workload Identity.

Note, for the Azure OpenAI, Microsoft Graph, and SharePoint integrations the scopes field is automatically populated with sensible defaults within the template on the Connect side, but additional scopes can still be added if needed.

Authentication types

See Authentication types for general definitions. The Azure templates differ in which types they support:

Authentication types supported by each Azure integration.
Integration Template Viewer Service Account Workload Identity
Azure azure Yes Yes Yes
Azure Databricks azure Yes Yes Yes
Azure OpenAI azure-openai Yes Yes No
Microsoft Graph msgraph Yes Yes No
SharePoint Online sharepoint Yes Yes No

Azure Databricks is not a separate template. It is the general Azure template configured with the Databricks scope, so it supports whatever that template supports, including Workload Identity.

Workload Identity is available only through the general Azure template. It reaches the same application identity as Service Account without storing a client secret in Connect, so Microsoft recommends it where possible.

Connect configuration

Performed by a Connect administrator. One Entra ID application registration can back several integrations; each is created separately in Connect with the scopes appropriate to its API.

After the Azure administrator completes the steps listed in the General setup guide, they pass the necessary information (tenant_id, client_id, client_secret, scopes, etc) to the Connect administrator who follows the instructions in this guide to complete the process of setting up an integration.

Create integration in Posit Connect

Using the information from the Azure administrator, the Posit Connect administrator creates an integration through the dashboard’s System > Integrations settings. Once the integration has been created in Connect, it is available for use by all publishers. See Access control lists for information on customizing access to specific users or groups.

Alternatively, the example below shows how to create a Confidential Viewer Azure integration using curl and the Connect Server API. Replace connect.example.org with the address of the Connect server.

Terminal
curl -H "Authorization: Key ${CONNECT_API_KEY}" \
  -XPOST https://connect.example.org/__api__/v1/oauth/integrations \
  --data '{
    "template": "azure",
    "name": "Azure integration",
    "description": "A helpful description for publishers to use when choosing an integration for their content.",
    "config": {
      "auth_type": "Viewer",
      "tenant_id": "<azure-tenant-id>",
      "client_id": "<azure-client-id>",
      "client_secret": "<azure-client-secret>",
      "scopes": "<desired_scopes> offline_access"
    }
  }'
# 200 OK
# {"guid": "<oauth-integration-guid>", ... }

To create a Workload Identity integration:

Terminal
curl -H "Authorization: Key ${CONNECT_API_KEY}" \
  -XPOST https://connect.example.org/__api__/v1/oauth/integrations \
  --data '{
    "template": "azure",
    "name": "Azure Workloads",
    "description": "Workload identity federation with Azure.",
    "config": {
      "auth_type": "Workload Identity",
      "tenant_id": "<azure-tenant-id>",
      "client_id": "<azure-client-id>"
    }
  }'
# 200 OK
# {"guid": "<oauth-integration-guid>", ... }

After the Azure administrator completes the steps listed in the General setup guide, they pass the necessary information (tenant_id, client_id, client_secret, scopes, etc) to the Connect administrator who follows the instructions in this guide to complete the process of setting up an integration.

Create integration in Posit Connect

Using the information from the Azure administrator, the Posit Connect administrator creates an integration through the dashboard’s System > Integrations settings. Once the integration has been created in Connect, it is available for use by all publishers. See Access control lists for information on customizing access to specific users or groups.

Note

The OAuth scope https://cognitiveservices.azure.com/.default is a reference to the Microsoft Cognitive Services/user_impersonation permission that allows deployed content on Connect to access protected Azure OpenAI resources.

Alternatively, the example below shows how to create a Confidential Viewer Azure integration using curl and the Connect Server API. Replace connect.example.org with the address of the Connect server.

Terminal
curl -H "Authorization: Key ${CONNECT_API_KEY}" \
  -XPOST https://connect.example.org/__api__/v1/oauth/integrations \
  --data '{
    "template": "azure-openai",
    "name": "Azure OpenAI integration",
    "description": "A helpful description for publishers to use when choosing an integration for their content.",
    "config": {
      "auth_type": "Viewer",
      "tenant_id": "<azure-tenant-id>",
      "client_id": "<azure-client-id>",
      "client_secret": "<azure-client-secret>",
      "scopes": "https://cognitiveservices.azure.com/.default offline_access"
    }
  }'
# 200 OK
# {"guid": "<oauth-integration-guid>", ... }

After the Azure administrator completes the steps listed in the General setup guide, they pass the necessary information (tenant_id, client_id, client_secret, scopes, etc) to the Connect administrator who follows the instructions in this guide to complete the process of setting up an integration.

Create integration in Posit Connect

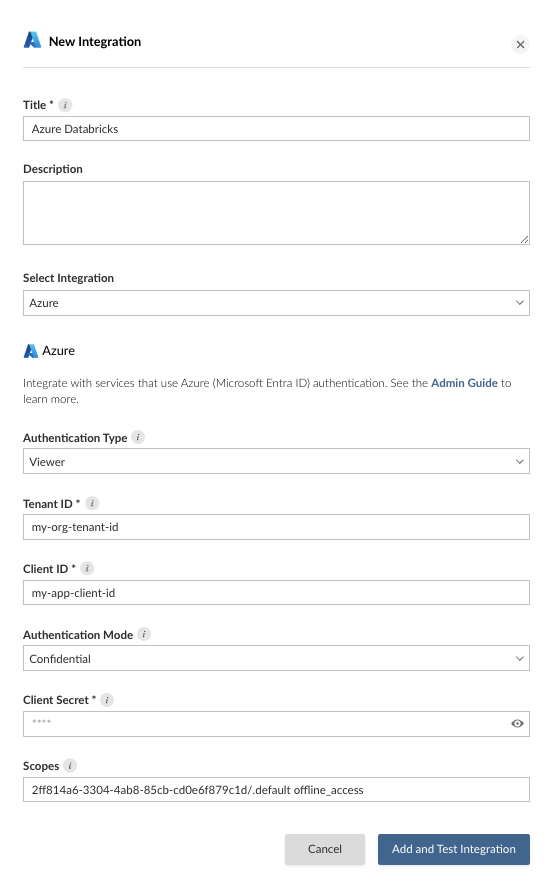

Using the information from the Azure administrator, the Posit Connect administrator creates an integration through the dashboard’s System > Integrations settings. Once the integration has been created in Connect, it is available for use by all publishers. See Access control lists for information on customizing access to specific users or groups.

The AzureDatabricks/user_impersonation permission uses the scope value 2ff814a6-3304-4ab8-85cb-cd0e6f879c1d/.default. This scope allows Connect to access the viewer’s Databricks resources.

To configure an Azure Databricks integration, use the general Azure template with the value 2ff814a6-3304-4ab8-85cb-cd0e6f879c1d/.default in the scopes field.

Alternatively, the example below shows how to create a Confidential Viewer Azure Databricks integration using curl and the Connect Server API. Replace connect.example.org with the address of the Connect server.

Terminal
curl -H "Authorization: Key ${CONNECT_API_KEY}" \
  -XPOST https://connect.example.org/__api__/v1/oauth/integrations \
  --data '{
    "template": "azure",
    "name": "Azure Databricks integration",
    "description": "A helpful description for publishers to use when choosing an integration for their content.",
    "config": {
      "auth_type": "Viewer",
      "tenant_id": "<azure-tenant-id>",
      "client_id": "<azure-client-id>",
      "client_secret": "<azure-client-secret>",
      "scopes": "2ff814a6-3304-4ab8-85cb-cd0e6f879c1d/.default offline_access"
    }
  }'
# 200 OK
# {"guid": "<oauth-integration-guid>", ... }

After the Azure administrator completes the steps listed in the General setup guide, they pass the necessary information (tenant_id, client_id, client_secret, scopes, etc) to the Connect administrator who follows the instructions in this guide to complete the process of setting up an integration.

Create integration in Posit Connect

Using the information from the Azure administrator, the Posit Connect administrator creates an integration through the dashboard’s System > Integrations settings. Once the integration has been created in Connect, it is available for use by all publishers. See Access control lists for information on customizing access to specific users or groups.

Alternatively, the example below shows how to create a Confidential Viewer Microsoft Graph integration using curl and the Connect Server API. Replace connect.example.org with the address of the Connect server.

Terminal
curl -H "Authorization: Key ${CONNECT_API_KEY}" \
  -XPOST https://connect.example.org/__api__/v1/oauth/integrations \
  --data '{
    "template": "msgraph",
    "name": "Microsoft Graph integration",
    "description": "A helpful description for publishers to use when choosing an integration for their content.",
    "config": {
      "auth_type": "Viewer",
      "tenant_id": "<azure-tenant-id>",
      "client_id": "<azure-client-id>",
      "client_secret": "<azure-client-secret>",
      "scopes": "https://graph.microsoft.com/.default offline_access"
    }
  }'
# 200 OK
# {"guid": "<oauth-integration-guid>", ... }

After the Azure administrator completes the steps listed in the General setup guide, they pass the necessary information (tenant_id, client_id, client_secret, scopes, etc) to the Connect administrator who follows the instructions in this guide to complete the process of setting up an integration.

Create integration in Posit Connect

Using the information from the Azure administrator, the Posit Connect administrator creates an integration through the dashboard’s System > Integrations settings. Once the integration has been created in Connect, it is available for use by all publishers. See Access control lists for information on customizing access to specific users or groups.

Alternatively, the example below shows how to create a Confidential Viewer SharePoint integration using curl and the Connect Server API. Replace connect.example.org with the address of the Connect server.

Terminal
curl -H "Authorization: Key ${CONNECT_API_KEY}" \
  -XPOST https://connect.example.org/__api__/v1/oauth/integrations \
  --data '{
    "template": "sharepoint",
    "name": "SharePoint integration",
    "description": "A helpful description for publishers to use when choosing an integration for their content.",
    "config": {
      "auth_type": "Viewer",
      "tenant_id": "<azure-tenant-id>",
      "client_id": "<azure-client-id>",
      "client_secret": "<azure-client-secret>",
      "scopes": "00000003-0000-0ff1-ce00-000000000000/.default offline_access"
    }
  }'
# 200 OK
# {"guid": "<oauth-integration-guid>", ... }

Credential delivery

Content receives a Microsoft OAuth access token through the Connect credential exchange endpoint, using the viewer’s user session token for Viewer integrations or the content session token for Service Account and Workload Identity integrations.

For Workload Identity integrations, Connect additionally sets CONNECT_AZURE_INTEGRATION_GUID in the content environment and writes a federated token to a file published in AZURE_FEDERATED_TOKEN_FILE, refreshing it for the life of the content process, so Azure SDKs can authenticate without a client secret.

See Token exchange for the general mechanism.

Publisher usage

Once the integration is configured, publishers can use it in their content. See the following cookbook recipes for examples:

Microsoft Graph:

SharePoint:
